Automatic Sliding Door Mechanism HH130/HH150

Automatic Sliding Door Mechanism HH130/HH150 is a slim tyle mechanism.

Features

  • Microcomputer control system drive motor, control door body to operate according to the set mode; controller with 12V, 24V power supply, no need to add extra transformer, Built-in security protection beam, double door interlock, and more other interfaces.
  • Brushless DC motor, surface matte treatment, sturdy and durable; with safety protection circuit device, even if it is frequently opened and closed, it can achieve a long-term trouble-free operation.
  • The guide rail height is only 8cm, the installation space is infinitely utilized and the rubber silent shock absorbing bar is added to make the operation more stable and quiet; the S5M belt is used to reduce the contact area and reduce the running noise.
  • The Z4-class super-mute shaft is used to match the imported nylon wheels with large diameter, which is more anti-off and quiet.
  • Suitable for office buildings, storefronts, banks, restaurants, hotels, shopping centers, laboratories, hospitals, and other places.

Product Details

Automatic Sliding Door Mechanism D5 1



Components Position in the Guide Rail

components position in the guide rail



Components of Automatic Sliding Door Mechanism

 Included components of the basic set D5



Components' Details of Sliding Door Mechanism

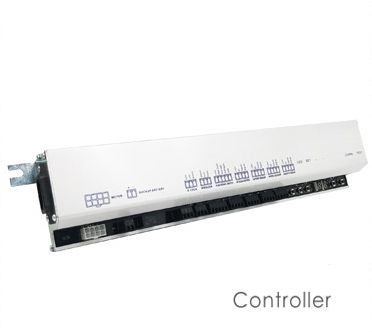

controller

      Microcomputer Controller

The microcomputer controller of the automatic door is used to receive the detection signal of a sensor or other
switch, which is used to drive motor controls the door body to move in a
suitable manner.

The controller itself comes with 12V, 24V
power supply, no need to use
transformer.

Newly added ports for security protection
light,
access control, electric lock, backup power double door interlock, etc.



Brushless DC motor

Small size and high power DC brushless
motor
(longer life and less noise than brushed motor)
Made of high-strength aluminum alloy, with
matte surface, durable.

The internal fully sealed structure is durable
and
does not leak oil.

With safety protection circuit device, long-term trouble-free operation can be achieved even
with
frequent opening and closing.

 Motor
 Microwave Sensor Microwave Sensor

24.125GHz microwave sensor module imported from Germany, not affected by temperature and humidity influences.

The highest installation height is 4 meters, which is easy to install, stylish and beautiful, and resistant to microwave emission.

Track

It is made of 6063 -T5 high-purity aluminum alloy.

The size of track 82 * 88MM, unlimited use of installation space. Split track type design, add rubber silent damping bar, make the operation more stable, more convenient.

 track



 TECHNICAL SPECIFICATION

Automatic Sliding Door Mechanism HH130/HH150 is suitable for a single door with a weight of up to 130/150kg.

HH130/HH150  Single Double
 Max.Weight of Body 130KG/150KG 130KG/150KG
Door leaf width 700-1300mm 600-1250mm
 Opening Speed Max 500mm/s (Adjustable)
Clothing Speed Max 450mm/s (Adjustable)
 Holding Time 0~60s (Adjustable)
Motor 24V brushless motor, 80W, 2300rpm
Power supply AC90V~250V 50~60HZ
Operating Temperature -20℃+50℃



Sectional view of Automatic Sliding Door Mechanism

Sectional view of Automatic Sliding Door Mechanism D5

Installation

1. Installation of guide rail and stoppers

• Infrastructure requirements: the installation surface must be smooth and firm,concrete walls must be able to be connected with M8 expansion pipes,structural steel beam must be able to be fixed with M8 screwes.
• Cut the guide rail according to the door design requirements, and fix the guide rail onto the wall or steel structure with M8 screws flatly and firmly.

 Install the guide rail at a height of DH+16mm from the ground
( measure from the bottom of the guide rail )

1. Drill holes on the guide rail and steel structure ( or wall
surface ) to install the guide rail.
2. Drill holes on the guide rail and cover plate for power
cable and sensor cables.
3. Measure the levelness of the guide rail two ends.
4. Fix two ends of the guide rail onto the steel structure
( or wall surface) with two screws temporarily.
5. After recalibrate the levelness, fix the guide rail onto
the steel structure ( or wall surface) with screws ( or M8
expansion bolts ).
Note:
1. The guide rail must be level.
2. The sliding door panel height is DH.
3. The clear height above the guide rail must be
more than 50mm.
4. The head of the screws must be fully sunk to
avoid maifuntion.

 installation of guide rail drawing D5



2. Installation of hangers

1 Insert the bolts (M8X20) for hanger into the sliding door panel top and reserve gap at least 6mm;
2 Insert these bolts into the square holes at hangers' bottom too, note the door levelness and position
3 Tighten above bolts according to below hanger position figure:

installation of hangers drawing D5

installation of hangers drawing 1 D5

3. Installation of stopper

Fix two stoppers at the door full open position and full close position, tighten the bottom bolt M8X10 of the stopper, ensure the sliding door panel will not slide off from the guide rail

installation of stopper drawing D5

4. Installation of motor and controller

Insert four M6X12 bolt sets ( see below figure ) at the left of the guide rail and the controller on the bolt sets then tighten the bolts.

installation of motor and controller drawing D5

5. Installation of idle pulley

Insert two M6X12 bolt sets ( see below figure ) at the right of the guide rail, hang the idle pulley on the bolt sets.

installation of idle pulley drawing D5

6. Installation of belt

6.1 Belt connector fixation
Cut the belt according to your need, insert the belt into the belt connector(s), hang the belt ring onto
the motor wheel and idle pulley wheel.

6.2 Belt tension adjustment
1 . Pull the ilde pulley to the right end of the guid rail to make belt tight, then tighten the bolt set M6X12
2. Loosen the four bolt C
3. Rotate the bolt D clockwise to move the adjustment plate to the right, the tension is increasing until
the tension is suitable;
4. Tighten the bolt C.

installation of belt drawing D5
